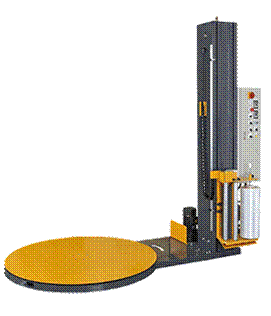

Stretch wrapping machine:



Model No.











EMW-301






Characteristic

  • Utilizes PLC control, equipped with standard organization of professional design.
  • A frequency inverter controls the speed of the motor, so that the film wrapping and rotational speed can be perfectly matched.
  • The film carriage is equipped with chain drive, for smooth vertical movement. Speed is adjustable.
  • Turntable is is equipped with chain drive, for stable turning during pallet loading. Speed is adjustable.
  • When moving, the pillar can be directly put down. Don't need to take apart the film carriage. This saves time and prevents negligence when reinstalling.
  • Manual or auto mode of operation.
  Power

3Ų , 220, 380, 415, 440V(50/60HZ)
1Ų , 110, 220V(50/60HZ)

 Wrapping Height 2100 mm
 Turntable Diameter

1500 mm
Turntable Height

80MM
Turntable loading weight

1500kgs (Max. 2000kgs)
Turntable speed

5-15 RPM (speed adjustable)

Film specification

Film reel core dia.: 76mm
Film reel outside dia.: Max. 350 mm
Width: 500mm

Film thickness

17~35 Microns

Miscellaneous Watch video demo



  •  Note: Specifications subject to change without notice.
